The Hub
Nucleus of the smart ecosystem.
Let the hub worry about your safety and well-being.
Features
IR remote control
Control all your appliances with IR Remote Control and make life easy and smart.
Voice prompt
Automatic Alarm with message push reminder to inform whenever anything unusual happens.
Long battery life
Smart battery that lasts for longer time.
Accurate Sensing
All input commands are accurately and quickly sensed.
The Hub Specifications
| Working Temp.: | 0°C ~ +40°C |
|---|---|
| Power Supply: | DC 5V / 1A |
| Network: | 2.4 GHz Wi-Fi |
| Receiving Sensitivity: | -98dBm |
| Wi-Fi Max Power : | <20dBm |
| IR Angle: | 360° Reflective environment |
| Number of Node Connections: | 30 |
| ZigBee: | 2.4 GHz ZigBee 3.0 |
| Transmit Power: | 19dBm |
| Size: | 90 x 90 x 35 (mm) |
| Power Port: | Micro USB |
| IR Distance: | Non Reflective open space ≥10m. Indoor white wall empty space ≥15m. |

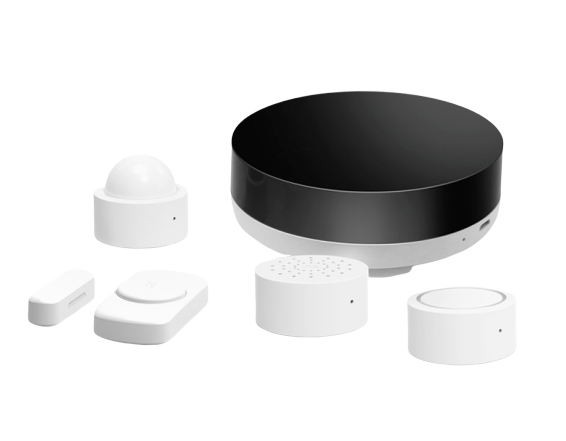

Supported Products Specification
Multi-Function Button
| Receiving Sensitivity: | -98dBm |
|---|---|
| Transmit Power: | ≤10dBm |
| Size: | 30.6 x 15.7 (mm) |
| Working Temp.: | 0°C ~ +40°C |
| Battery: | CR 2450 |
| ZigBee: | 2.4 GHz ZigBee 3.0 |
Temp-Humidity Sensor
| Temperature Detection Accuracy: | ±0.5°C |
|---|---|
| Battery: | CR 2450 |
| Transmit Power: | ≤10dBm |
| Receiving Sensitivity: | -98dBm |
| Working Temp.: | 0°C ~ +40°C |
| ZigBee: | 2.4 GHz ZigBee 3.0 |
| Size: | 30.6 x 15.7 (mm) |
| Relative Humidity Detection Accuracy: | ±5% |
Motion Sensor
| Working Temp: | 0°C ~ +40°C |
|---|---|
| Detection Range: | 4m ~ 6m |
| Detection Angle: | 120° ~140° |
| Size: | 31 x 27.5 (mm) |
| Battery: | CR 2450 |
| ZigBee: | 2.4 GHz ZigBee 3.0 |
| Transmit Power: | ≤10dBm |
| Receiving Sensitivity: | -98dBm |

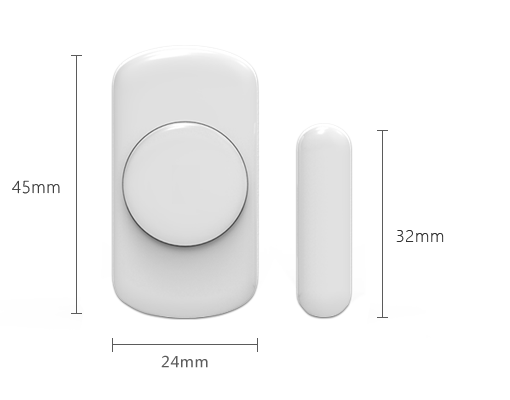

Entry Sensor
| Detection Range: | ≤20mm |
|---|---|
| Transmit Power: | ≤10dBm |
| Working Temp.: | 0°C ~ +40°C |
| Battery: | CR 1632 |
| Size: | 45 x 24 x 11.5 (mm) |
| ZigBee: | 2.4 GHz ZigBee 3.0 |
| Receiving Sensitivity: | -98dBm |
